Preface

This is just a report of what we did. Please be careful when trying to do what we have done! Use your brain!

Questions about the project can be sent to ptflea [at] hackerspace-bamberg [dot] de

After successfully getting the styroplotter to work, it was time to cast some aluminum. Aluminum has the advantage of melting at a low temperature, making it possible to use a simple propane flame.

Materials

  • aluminum
  • a styroplotter
  • styrofoam
  • Ytong bricks
  • silica sand
  • propane gas with burner
  • melting pot
  • face protection
  • no plastic clothing or short pants
  • caution! It is very, very hot material with which you won't want to get in contact!
  • bucket of water to cool off the hot aluminum
  • old pots and bowls
  • pipe wrench and old screw drivers

Furnace

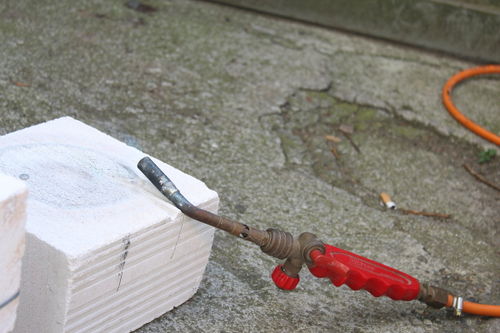

Saw the Ytong brick into three 20x20 parts and pierce one in the middle for the melting pot to fit in. Put the burner into the lower brick and scrap an air conduct next to it. Make a hole for exhaustion and perhaps two flow-out channels.

Backspace aluguss 01.jpg

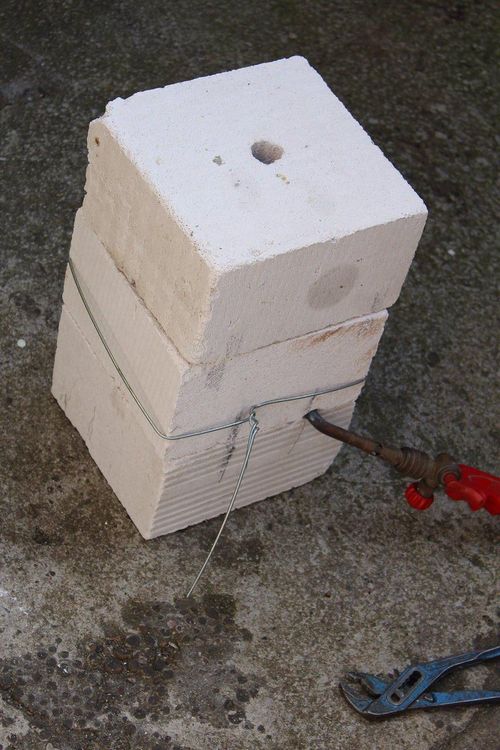

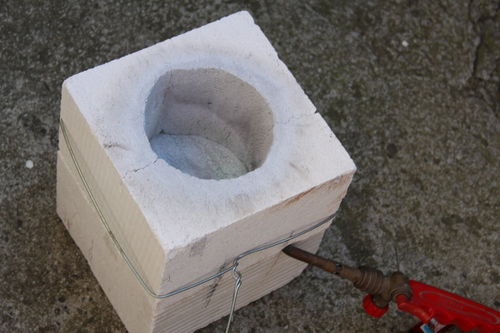

Even for an Ytong brick the heat can be too much and it will break, that's why we put wire around it.

Backspace aluguss 02.jpg

Backspace aluguss 03 links.jpg

Aluminum

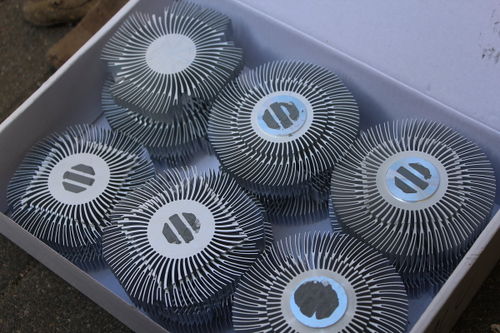

The basic material consists of processor cooling elements.

Backspace aluguss 04.jpg

We made them fit with a hammer.

Backspace aluguss 05.jpg

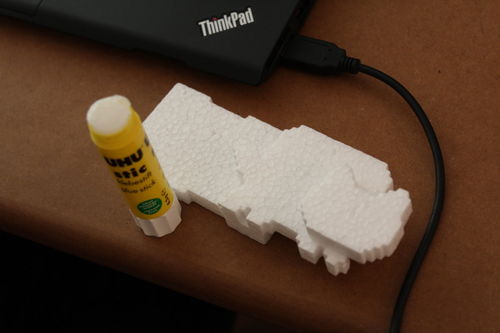

The styro parts have to be glued together and a filling piece attached.

Backspace aluguss 06.jpg

Preparation

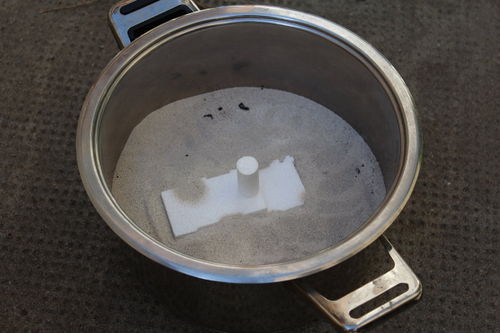

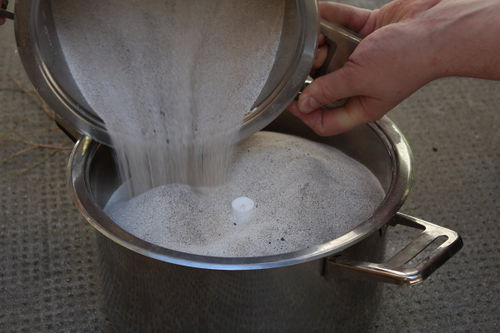

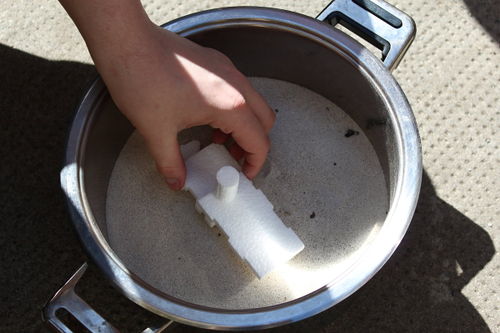

The styro parts are completely immerged into the sand.

Backspace aluguss 07.jpg Backspace aluguss 08.jpg Backspace aluguss 09.jpg

Aluminum cast

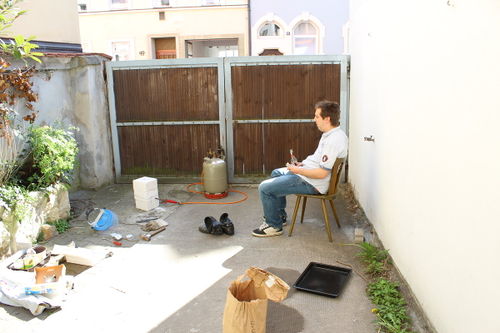

Get the burner burning and don't leave it alone.

Backspace aluguss 10.jpg

When the aluminum has melted, and take the slag off with a screw driver.

Backspace aluguss 11.jpg

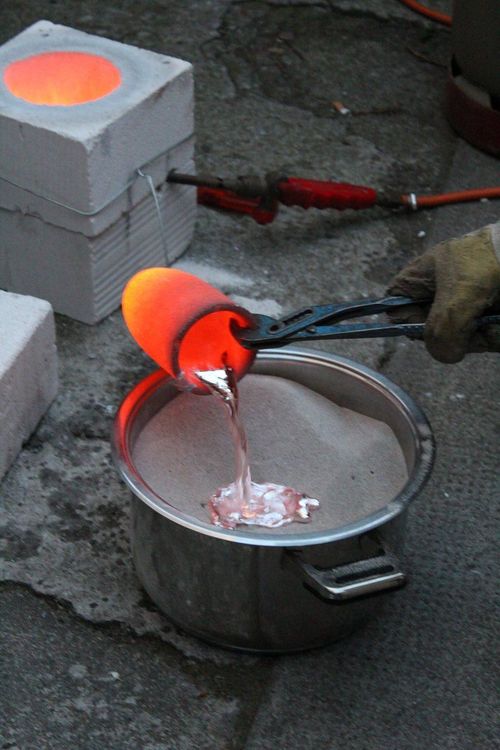

Cast now!

VIDEO: https://vimeo.com/42302000

Backspace aluguss 12 rechts.jpg

VIDEO: https://vimeo.com/42464520

VIDEO: https://vimeo.com/42464519

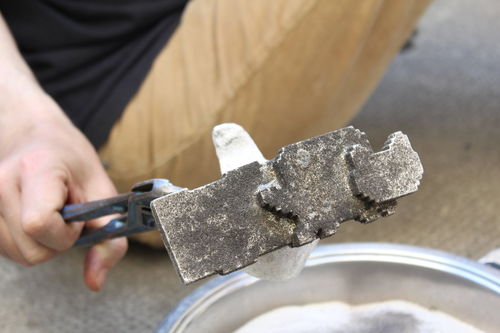

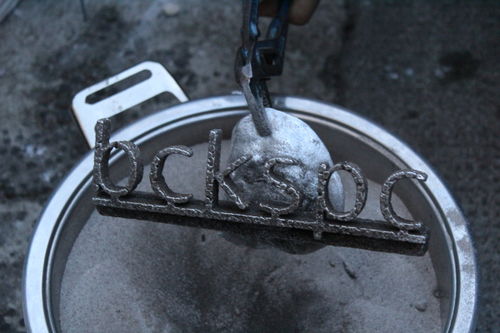

Fetch the casted material from the sand, using the wrench. Remember that it can still be very hot!

Backspace aluguss 13.jpg

Backspace aluguss 14.jpg

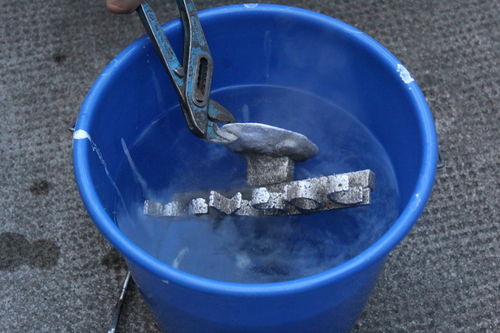

Cool it in the water bucket.

Backspace aluguss 15.jpg

VIDEO: https://vimeo.com/42464521

Postproduction

Saw off the filling piece!

Backspace aluguss 16.jpg

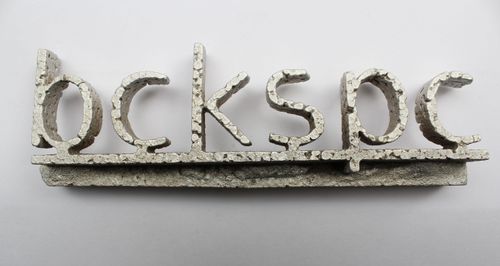

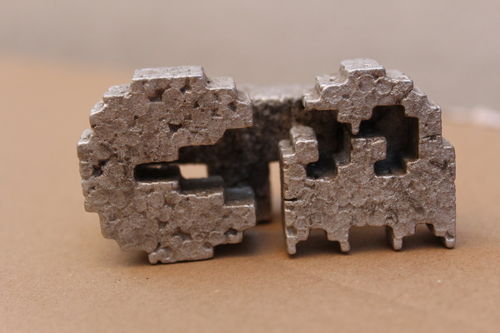

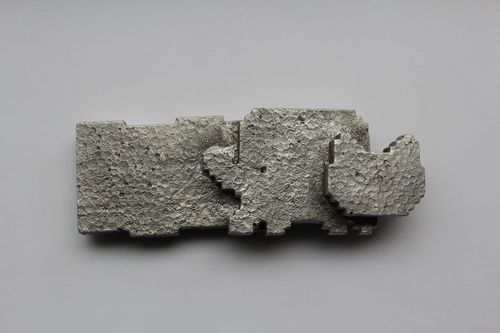

Results

Backspace aluguss 17.jpg

Backspace aluguss 18.jpg

Backspace aluguss 19 1.jpg
